No, we didn't cheat in the benchmark. At least I hope we didn't. Every optimization in this story was gated on bit identical output checksums against HotSpot, and the harness refuses to print a ratio when a checksum differs. If anything, this post is about how good HotSpot actually is. We tilted the table in our favor in every way we could, we hand tuned C code, and we still only beat it on some benchmarks. Getting there was a genuine struggle. If you want to understand the nuts and bolts of what your Java code costs, and the tradeoffs each runtime picks, I hope this is a good read.
What is Codename One? Codename One is an open-source framework for building native iOS, Android, desktop, and web apps from a single Java or Kotlin codebase. Learn more at codenameone.com.
The short version: PR #5327 takes ParparVM, the AOT VM that compiles your Java bytecode to C for iOS and other targets, from 4.21x slower than warmed Java 25 to geomean 1.00x parity across a ten benchmark suite, with six of the ten at or below HotSpot. Along the way you'll meet a new page based heap, a poor man's Project Valhalla, code generation that finally lets clang do its job, and two places where HotSpot beat our hand written C anyway. The memory story ends even better than the speed story.
But before we get to that, a few announcements.
Before You Update
The optimizations below landed this week. Performance was gated on bit identical output vs HotSpot on every commit. Correctness went further: 63 test pipelines ran across the ports, with torture suites for maps, string builders, threads, and GC stress, in both cooperative and forced signal stop modes, and we squashed every bug we found along the way, several of them in ports far from the VM. But this is a deep change to code generation, allocation, and collection. Like any change of this scale, there's risk.
If a build misbehaves, pin to the previous release with versioned builds and let us know through the usual channels. That's exactly the case versioned builds exist for.
There's a lot more shipping this week beyond the VM work; the bottom of this post links to the daily posts covering it.
The Starting Point
Client VMs are a different beast. The joke around here is that I built ParparVM in two weeks and Steve spent the next three years fixing bugs. When I built it, throughput wasn't a priority at all. I was aiming for simplicity, reliability, and consistency. What actually matters for client performance is startup time, memory footprint, low latency, and fast native access. 90% of client code time should be spent in rendering and IO, and in Codename One those paths are handcrafted native code on each platform, already tuned to the metal.
Occasionally a customer would complain about performance, we'd add an optimization for that specific case, and we'd move along. We profiled common use cases, they were fine, and we never treated VM throughput as a problem. Comparing against HotSpot wasn't even on the table. You can't out-optimize a JIT, and we didn't run on the same platforms anyway. Now that we have desktop ports, people are porting heavier workloads and running direct comparisons on the same hardware. I assumed we were 2x or 3x slower than warmed HotSpot, ignoring startup.
I was really, really off. Measuring it took some surgery: ParparVM normally exists to run Codename One, so we hacked it to run standalone, without the framework, and the suite measures the VM alone rather than the framework on top of it. The reference is OpenJDK 25 with full warmup, and warmed is the fair way to measure it: Java 25 ships ahead of time class loading and method profiles, so a deployed app can reach that warmed state quickly rather than earning it over thousands of iterations. Here's the starting point on an Apple M2, identical checksums on both runtimes:
| Benchmark |
What it stresses |
ParparVM vs Java 25 |
| hashMapChurn |
HashMap put/get with autoboxing |
36.2x slower |
| stringBuilding |
StringBuilder append and hash |
22.7x slower |
| objectAllocation |
Allocation and GC churn |
19.6x slower |
| recursion |
Deep call chains (fib) |
7.6x slower |
| arraySequential |
Fill and reduce |
3.7x slower |
| quicksort |
Compare, swap, recurse |
1.8x slower |
| longArithmetic |
64-bit ALU chain |
1.5x slower |
| intArithmetic |
32-bit ALU chain |
1.3x slower |
| mathTranscendental |
sqrt/sin/cos |
1.1x slower |
| arrayRandom |
Cache-miss gather |
1.0x |
Geomean: 4.21x slower. This was really bad.
Spoiler: after everything below, this is where the same suite landed.
| Benchmark |
Final ratio |
|
Benchmark |
Final ratio |
| stringBuilding |
0.67x |
|
arrayRandom |
0.96x |
| arraySequential |
0.82x |
|
intArithmetic |
1.07x |
| quicksort |
0.92x |
|
longArithmetic |
1.12x |
| hashMapChurn |
0.95x |
|
objectAllocation |
1.19x |
| mathTranscendental |
0.96x |
|
recursion |
1.60x |
Geomean 1.00x. Below 1.0 means we beat warmed HotSpot C2. Same Java source, same checksums, best of 5 interleaved runs. The interleaving isn't decoration: early on, sequential A-then-B timing on the M2 carried a 10 to 15% thermal bias that made one change look 1.5x faster when it was worth 3%, so the harness alternates the two VMs within a run.
One methodology note before you ask: the comparison runs on macOS because HotSpot doesn't run on iOS. The same generated C ships to every Apple target, so the codegen wins carry over to devices where the JIT can't follow.

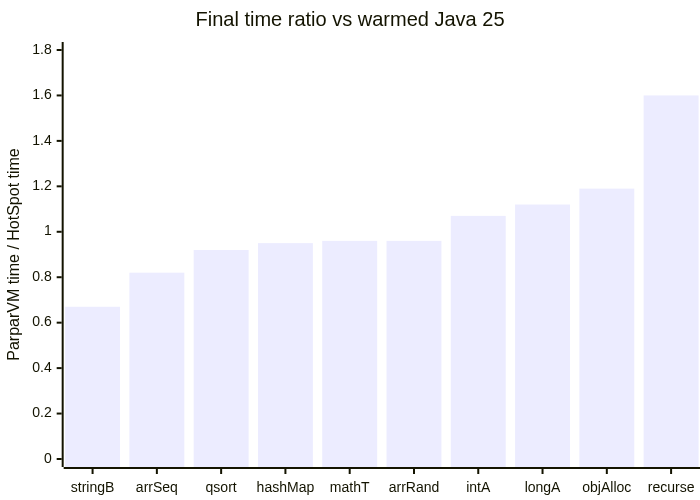

Lower is better and 1.0 is HotSpot; everything left of intArithmetic finishes ahead of it. The starting ratios wouldn't fit on this chart. hashMapChurn began at 36.
The Memory Story
Speed is only half the report, and for client apps it's the less important half. RAM is where this release moves the most:
| Metric |
master |
this PR |
Java 25 |
| Binary size (bench app) |
434 KB |
451 KB (+3.8%) |
n/a |
| Memory floor (no-op app) |
2.2 MB |
2.4 MB |
~40 MB |

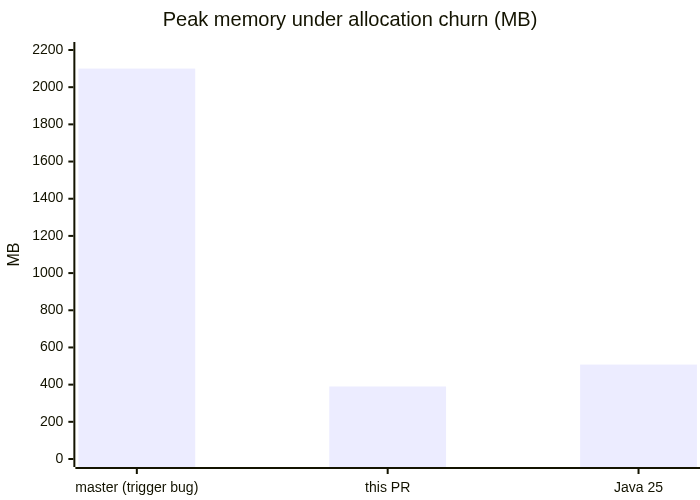

| Peak memory (allocation churn) |
1.4 to 2.1 GB |
290 to 390 MB |
508 MB |
Master's gigabyte peaks were a real GC bug this work exposed: the allocated-since-last-collection counter was a 32-bit int counting bytes. Workloads that allocate gigabytes per cycle wrapped it negative, the "am I allocating fast?" check answered no, and the collector slept through the storm while dead pages piled up. With the trigger fixed, heavy churn peaks below the JVM on the same workload, and the idle floor stays where a phone wants it: 2.4 MB. Sit with that pair for a second, because it's the whole thesis of this VM. Trading blows with warmed HotSpot on speed while holding a 2.4 MB floor against its ~40 MB.
How Did We "Cheat"?
The one advantage we have over HotSpot is that we're not Java. Not really. We bill ourselves as a tool that lets Java developers ship their Java apps to mobile devices. See what we did there? You write Java code, so it's a Java app. But we're not really Java in some major ways, and that gives us freedom HotSpot doesn't have.
We compile a closed world. There's no dynamic class loading, so we know every class that will ever exist. There's no reflection (Class.forName() exists in a limited form, and that's roughly the extent of it), so a method nobody calls is a method we can delete, and a virtual call with exactly one reachable implementation is a direct call. The API is smaller, so there's less legacy behavior to preserve. And we can play fast and loose with some nuanced VM behaviors that HotSpot must keep exactly (more on Integer identity below).
Without this cheating we would have lost every benchmark in the group. HotSpot carries a quarter century of engineering, and we wouldn't be able to come close playing "fair". Even with these structural advantages, we had to spit blood to get to a competitive point.
What The C Compiler Actually Sees
ParparVM translates bytecode to C and lets clang optimize it. So the whole game is: how much does the generated C look like the C a human would write? The answer, at the start, was "not at all". Every Java method pushed a GC visible frame of type tagged slots and routed every intermediate value through it:
/* BEFORE: one heap-visible frame per call, every value tagged and in memory */
JAVA_LONG fib(CODENAME_ONE_THREAD_STATE, JAVA_INT n) {
stack = pushFrameOnThreadStack(threadStateData, locals=2, stack=4);
memset(stack, 0, 6 * sizeof(elementStruct)); /* on EVERY call */
locals[0].type = CN1_TYPE_INT; locals[0].data.i = n;
(*SP).type = CN1_TYPE_INT; (*SP).data.i = 2; SP++;
if (locals[0].data.i < SP[-1].data.i) ... /* compare via memory */
releaseForReturn(threadStateData, ...);
}
That frame is how the GC finds live objects. It's also why clang couldn't keep anything in a register. Methods the translator can now prove safe (no try/catch, no synchronization, object roots covered by the native stack scan) compile to the C you'd write by hand:
/* AFTER: locals are C locals, so they become registers */
JAVA_LONG fib(CODENAME_ONE_THREAD_STATE, JAVA_INT n) {
JAVA_INT ilocals_0_ = n;
CN1_FRAMELESS_SOE_GUARD(0); /* stack-overflow check, nothing else */
if (ilocals_0_ < 2) return ilocals_0_;
return fib(threadStateData, ilocals_0_ - 1) + fib(threadStateData, ilocals_0_ - 2);
}
Between this and its follow-ups, recursion went from 7.6x to 1.6x. More importantly, frameless codegen feeds every other optimization, because once values live in registers the rest of clang's optimizer wakes up.
Why We Still Lose Recursion
The remaining 1.6x on recursion is HotSpot's speculative inlining, and we accepted it. A JIT watches the program run, notices that fib calls fib, inlines it into itself several levels deep, and keeps a deoptimization escape hatch in case its bet goes wrong. An ahead-of-time compiler doesn't get to gamble. It has to emit code that's correct for every possible execution, so a real call remains a real call. This is the structural advantage of a JIT and no amount of hand tuning closes it. If your workload is deep recursive call chains, HotSpot is simply the better machine for it.
The Bounds Check That Poisoned Every Loop
Java requires an index check on every array access. The check itself is cheap. What killed us was the shape of the failure path. Our bounds check helper threw the exception and then returned a dummy value, so the "failed" path rejoined the loop. That means every loop iteration contained a reachable function call, and clang must assume a call can modify any memory. So it reloaded the array pointer and the array length from memory on every single pass:
/* BEFORE: while (a[i] < pivot) i++; -- quicksort's scan loop */
label_scan:
if (cn1_array_element_int(ts, locals[0].data.o, i) >= pivot) goto done;
/* on bounds failure: throwException(...); return 0; ...and REJOIN.
A call is reachable on every iteration, so clang reloads
array->data AND array->length every pass: 3 loads per element. */
i++;
goto label_scan;
The fix is to make the failure path diverge. Throw and return from the method, the same way the stack overflow guard works. Now no cycle of the loop contains a call, and clang hoists the loads out of the loop:
/* AFTER: the throw path leaves the function; the loop is load/compare/branch */
label_scan:
{ JAVA_OBJECT a = locals[0].data.o; JAVA_INT idx = i;
CN1_ARRAY_CHECK_DIVERGE(a, idx, ); /* null/oob -> throw; return */
if (((JAVA_ARRAY_INT*)(*(JAVA_ARRAY)a).data)[idx] >= pivot) goto done; }
i++;
goto label_scan;
We measured the check itself against a pure C control at identical flags: raw C runs the sort in 91ms, C with diverging bounds checks in 98ms. So the safety Java mandates costs about 8% when the surrounding code is right. With the fix, the benchmark sort dropped from 216ms to 164ms, vs HotSpot's 197ms. Quicksort ended at 0.92x, below HotSpot, while keeping every check.
Where HotSpot Beat Our Hand-Tuned C
On intArithmetic and longArithmetic we wrote plain C controls, no VM, no GC, just the loop, compiled with the same clang flags. The generated ParparVM code ran at exact parity with the hand written C: 94.0ms vs 93.7ms, and 59.7ms vs 59.3ms. Zero VM overhead.
HotSpot still won, 1.07x and 1.12x. The residual is C2 reassociating the loop-carried dependency chain better than clang schedules it. On a tight arithmetic loop, HotSpot C2 generates better machine code than clang -O3 given identical semantics. The JIT sees the actual hot loop and its actual dependency graph and optimizes exactly that. We declared those benchmarks done, because when the gap between you and HotSpot is the same as the gap between clang and HotSpot, the VM is no longer the story.
There's one footnote worth stealing for any C-generating project: Java integer semantics require -fwrapv -fno-strict-aliasing. Without -fwrapv, clang -O3 provably miscompiles overflowing accumulation loops. Our checksum gate caught it, off by exactly 2^32 per overflow.
Memory: Two Philosophies
The worst starting numbers, the 20x to 36x ones, weren't about code generation at all. They were about memory, and to understand them you need to see how differently the two VMs think about it.
HotSpot asks the OS for one large block up front and manages everything inside it. That buys enormous speed. Allocation is a pointer bump into a thread-local slab, and because HotSpot owns the entire address range, a single address comparison can tell it which region or generation an object belongs to. Owning the addresses simplifies reasoning across the whole VM: barriers, card tables, generation checks, all of it gets cheaper when "where is this object?" is arithmetic.
ParparVM went the other way: we allocate through the OS's own malloc, calloc, and free. For years that looked like the slow, naive choice, and parts of it were slow. We keep it anyway, because it buys three things a client VM cares about more than benchmark points:
Direct native access. Native code and the GPU see our objects as ordinary memory, no pinning, no copying at a heap boundary. That's what makes fast SIMD and rendering paths practical.
Real tooling. Native profilers and leak detectors (Instruments, Valgrind, and friends) understand our memory, because it is ordinary memory, not a black-box block they can't see into.
A true footprint. The process holds only what the app actually uses. On constrained devices that's smaller, and what the OS reports for your app is what your app really costs.
A Big Bag Of Pages
The 19.6x objectAllocation gap was the bill for taking that philosophy too literally. Every new was a malloc, a full memset to zero, and an O(n) search for a tracking slot under a lock.
The new allocator is a BiBOP heap, short for "big bag of pages," and it's the largest single architectural change in the PR. The heap is organized as pages, each holding objects of a single size class. The size class of your object is known at compile time, so the allocation the C compiler sees is a pointer bump:
/* Inlined at the allocation site */
CN1BibopPage* p = bibopCurrent[SIZE_CLASS]; /* compile-time size class */
o = page_slot(p, p->bumpIndex++); /* pointer bump */
o->field1 = arg1; o->field2 = arg2; /* ctor writes every field */
o->parentCls = &class__Foo; /* class pointer LAST */
There's no zeroing, because the constructor writes every field anyway, and the class pointer is stored last, so the concurrent collector can never trace a half-built object. When every slot in a page turns out to be garbage, the page flips back to bump-from-zero in one step instead of being swept slot by slot. And the pages themselves still come from the OS allocator, so everything in the section above stays true. objectAllocation went from 19.6x to 1.19x.
This is where the two philosophies meet in the middle. We borrowed the part of HotSpot's design that makes allocation fast, pages we bump into, without borrowing the part we don't want, a giant pre-reserved heap the OS can't see into.
The GC, In Plain Terms

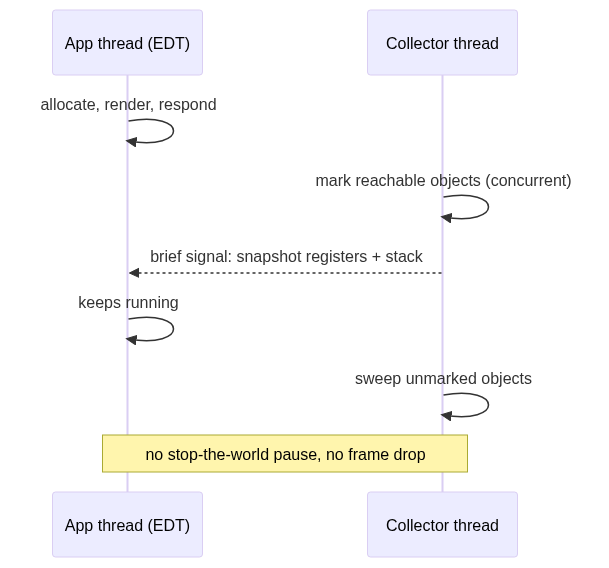

ParparVM's GC never stops the world. Your app's threads keep running while a background collector thread walks the object graph and marks everything reachable, then sweeps what wasn't marked. The threads cooperate: each thread either checks in at safe points, or the collector briefly interrupts it with a signal, captures its registers and stack for scanning, and lets it continue.
Why build it this way? Because on a client, pause time is the only GC metric users can feel. A 30ms collection pause during a scroll animation is two dropped frames, and users see it. A concurrent collector trades throughput for the guarantee that the animation never stutters.
Why We Don't Want A Generational GC
The standard server answer is a generational collector: allocate new objects in a nursery, collect it often, copy the survivors out. It's a throughput machine, and for servers it's the right call. We tried a nursery on this branch. objectAllocation improved, and hashMapChurn got worse, 32x to 43x. Copying collectors pay for survivors, and a map that holds its entries makes everything survive. UI workloads look like that constantly: the object graph behind a form mostly survives, frame after frame.
Generational collectors also move objects, which is a problem for us in two ways. Native code holds pointers into our heap, and a compacting collector would need to fix those up or pin everything native can see, which would surrender the direct native access we just listed as a core advantage. And copying needs headroom, roughly double the live set during collection, which is exactly the memory a 2.4 MB footprint client doesn't have. Our collector never moves an object. The BiBOP page recycling gives us the cheap-reclamation benefit a nursery promises, without copying anything.
A Poor Man's Valhalla
The hashMapChurn benchmark spends its life autoboxing, map.put(i, i * 2) style code that allocates an Integer per call on a standard JVM (outside the -128 to 127 cache). Project Valhalla is Java's decade-long effort to make such values cheap. We don't have to wait for it, because we control the whole stack.
On 64-bit targets, Integer.valueOf() no longer allocates anything. It returns a tagged pointer: the low bit is 1, the integer value lives in the high bits. Real object pointers are aligned, so their low bit is always 0, and the two can never collide:
real object: 0x0000600001a2c3f0 (low bit 0, points at a header)
tagged Integer: 0x000000000000001f (low bit 1, value = 0xf = 15)
The GC ignores tagged values entirely, dispatch substitutes Integer's class when it sees one, and unboxing is a shift. Boxing became free: the PR's A/B measures hashMapChurn at 2.8x with tagging disabled vs 0.97x with it on. It's on by default for 64-bit targets, with -DCN1_DISABLE_TAGGED_INT as the escape hatch.
There's a semantic price, and it's the same one Valhalla asks: Integer loses identity. Two boxes holding the same value are now literally the same value, so == on boxes behaves like the JDK's small-value cache extended to the whole range, and synchronized (someInteger) cannot mean anything. The JDK itself has deprecated wrapper constructors and warns against locking on value-based classes for years. Rather than let that fail silently at runtime, PR #5338 makes the build reject synchronized on a primitive wrapper at compile time, with a pointer toward a dedicated lock object. If your code locks on an Integer, it was already broken on modern JDKs in spirit. Now it's broken loudly, before it ships.
Objects That Stopped Existing
Two more changes share a theme with the tagged integers: the fastest object is the one you never allocate.
Fused objects. new String(...) used to be two heap objects, the String and its char[]. They're now one block, one allocation, one GC slot, no pointer hop between them:
BEFORE [ String header | fields ] --> [ char[] header | c0 c1 c2 ... ]
AFTER [ String header | fields | char[] header | c0 c1 c2 ... ]
This ships as @Fused, applied internally to String and StringBuilder, and usable on your own classes that wrap a primitive buffer.
Escape analysis. javac compiles "item-" + i + "/" + n into a StringBuilder chain. A control flow walk proves the builder never escapes the expression, so the builder and its buffer now live on the C stack. The only heap allocation in the whole concatenation is the final String. Combined with the rest, stringBuilding landed at 0.67x, finishing in two thirds of HotSpot's time, and this benchmark was rebuilt to be fair to HotSpot first (the original shape let HotSpot's own escape analysis delete the String entirely, so we made both VMs materialize every string).
Going Deeper
Optimization is a rabbit hole with no bottom. Every fix exposes the next lever, and part of the discipline is deciding where to stop. We're stopping here for now, because at geomean parity the VM is no longer the bottleneck for real apps. The map of the next levels is already drawn, and if a workload shows up that needs them, we'll keep digging:
Recursion sits at 1.6x and will stay roughly there. Speculative inlining is the JIT's home turf.
Tight arithmetic is 1.07x to 1.12x, and that's clang vs C2, not us vs HotSpot.
Cross-file inlining is the next big lever. We deliberately generate one readable C file per class. You can open the output, read it, and debug it in Xcode, and we're not willing to trade that for one huge merged source file. The cost shows up in call-chain-heavy code: a real map rendering workload still trails warmed HotSpot because of a per-byte readByte() chain that HotSpot inlines across class boundaries. ThinLTO already recovers part of the gap. The rest waits until something real needs it.
The machinery has a price small enough to state exactly: the benchmark app's binary grew from 434 KB to 451 KB. Those 17 KB buy the inlined fast paths, the compact HashMap, and the escape analysis.
The whole suite ships in the repo under vm/benchmarks, including the torture tests and the checksum gate:
export JDK_8_HOME=/path/to/jdk8
export BENCH_JAVA=/path/to/jdk25/bin/java
vm/benchmarks/run-benchmark.sh # interleaved best-of-5, ratio table + geomean
vm/benchmarks/run-gauntlet.sh # correctness: byte-identical output + GC stress
TL;DR
ParparVM went from 4.21x slower than warmed Java 25 to geomean 1.00x, with six of ten benchmarks at or below HotSpot, verified by bit identical output checksums.
Peak memory under heavy allocation now lands below the JVM's (290 to 390 MB vs 508 MB), from a 2.4 MB floor vs HotSpot's ~40 MB.
The architecture behind it: frameless C code generation, diverging bounds checks, a BiBOP page heap over the OS allocator, stack-allocated string building, and tagged Integers.
Tagged Integers change Integer identity, and the build now rejects synchronized on primitive wrappers (PR #5338).
The cost: 17 KB of binary. If anything misbehaves, pin with versioned builds and tell us.
